SIMPLIFIES YOUR SETUP

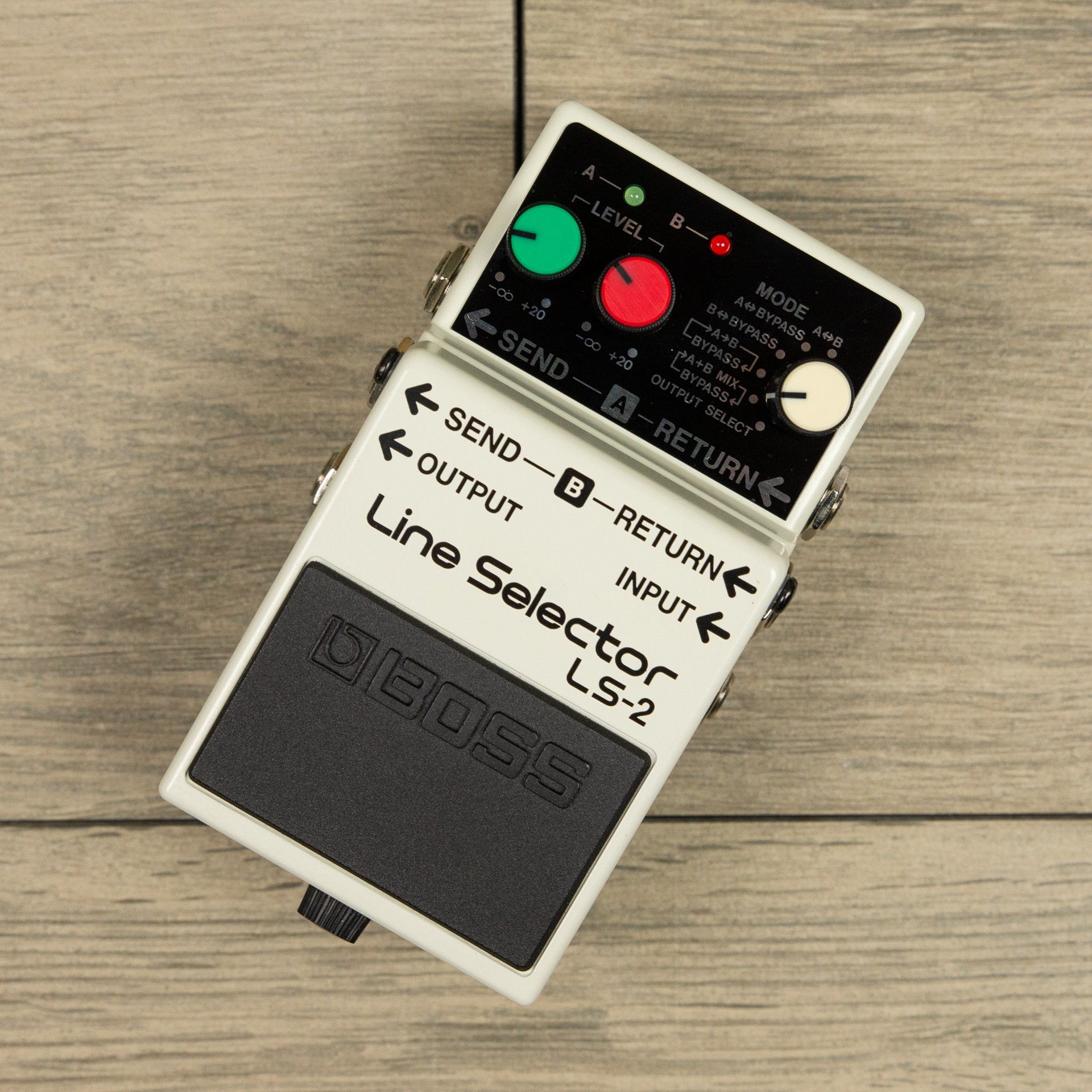

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
• Provides two line loops with Level control and six looping modes
• Can supply power to several BOSS compact pedals when used with an AC adaptor
• The ideal power supply and master switching unit for multiple effects setups
• BOSS 5-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:

  • MODE selector switch
  • LEVEL knobs A/B
  • Pedal switch
• Indicator: Line indicator A/B (Used for indication of check battery)
• Connectors:

  • INPUT jack: 1/4-inch phone type
  • SEND jacks A/B: 1/4-inch phone type
  • RETURN jacks A/B: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • DC IN/OUT jack
• Power Supply:

  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 25 mA
• Expected battery life under continuous use:

  • Carbon: Approx. 14 hours
  • Alkaline: Approx. 30.5 hours
  • * These figures will vary depending on the actual conditions of use.
• Accessories:

  • Owner's manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT:

• Width: 73 mm(2-7/8 inches)
• Depth: 129 mm(5-1/8 inches)
• Height: 59 mm(2-3/8 inches)
• Weight including battery: 410 g(15 oz.)
